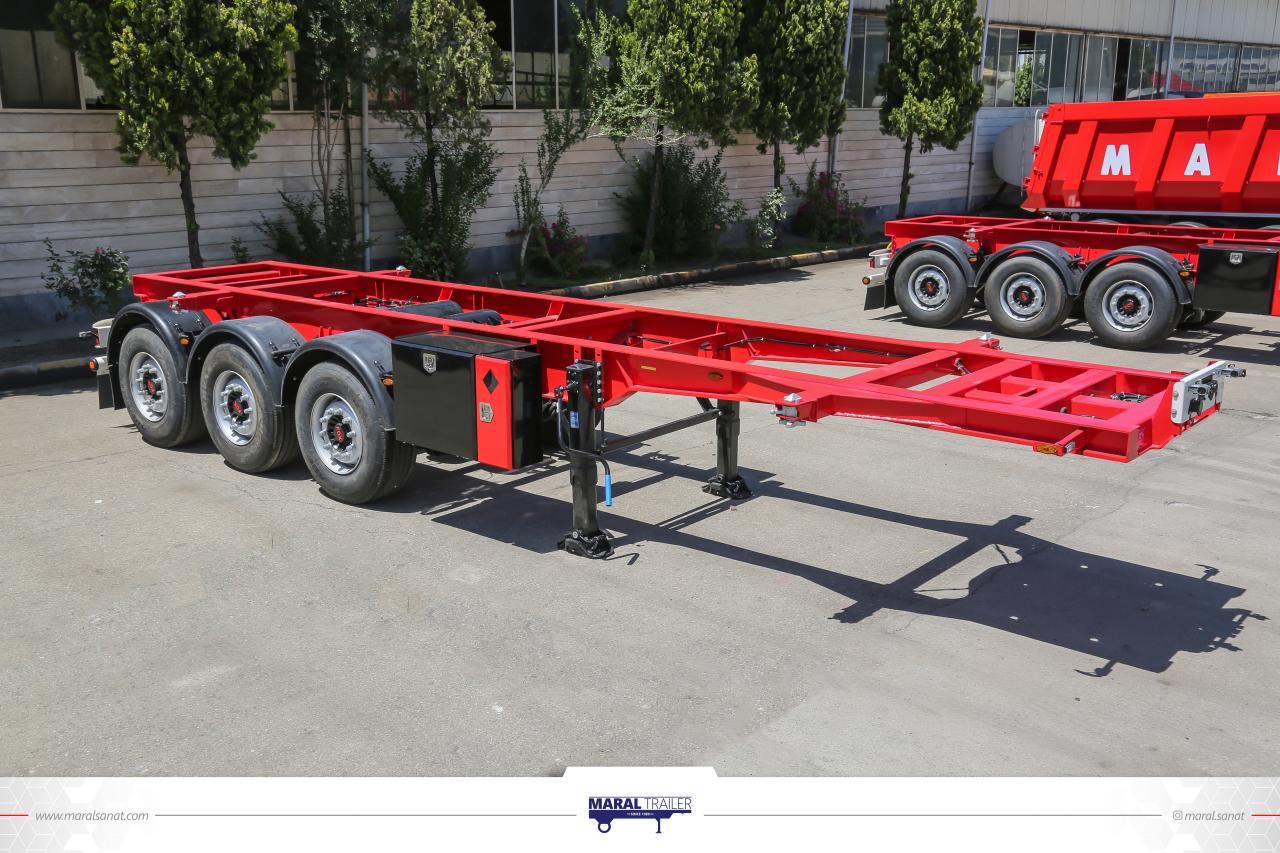

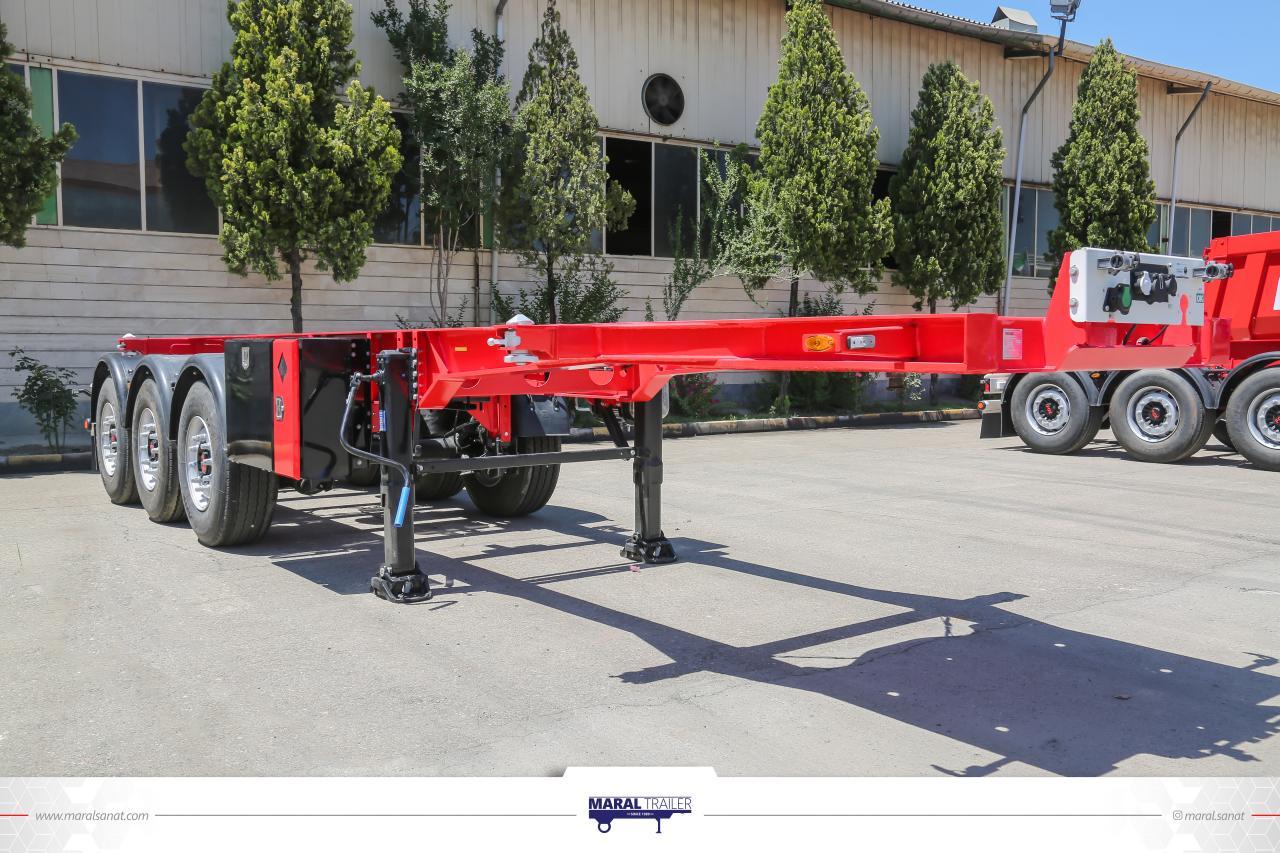

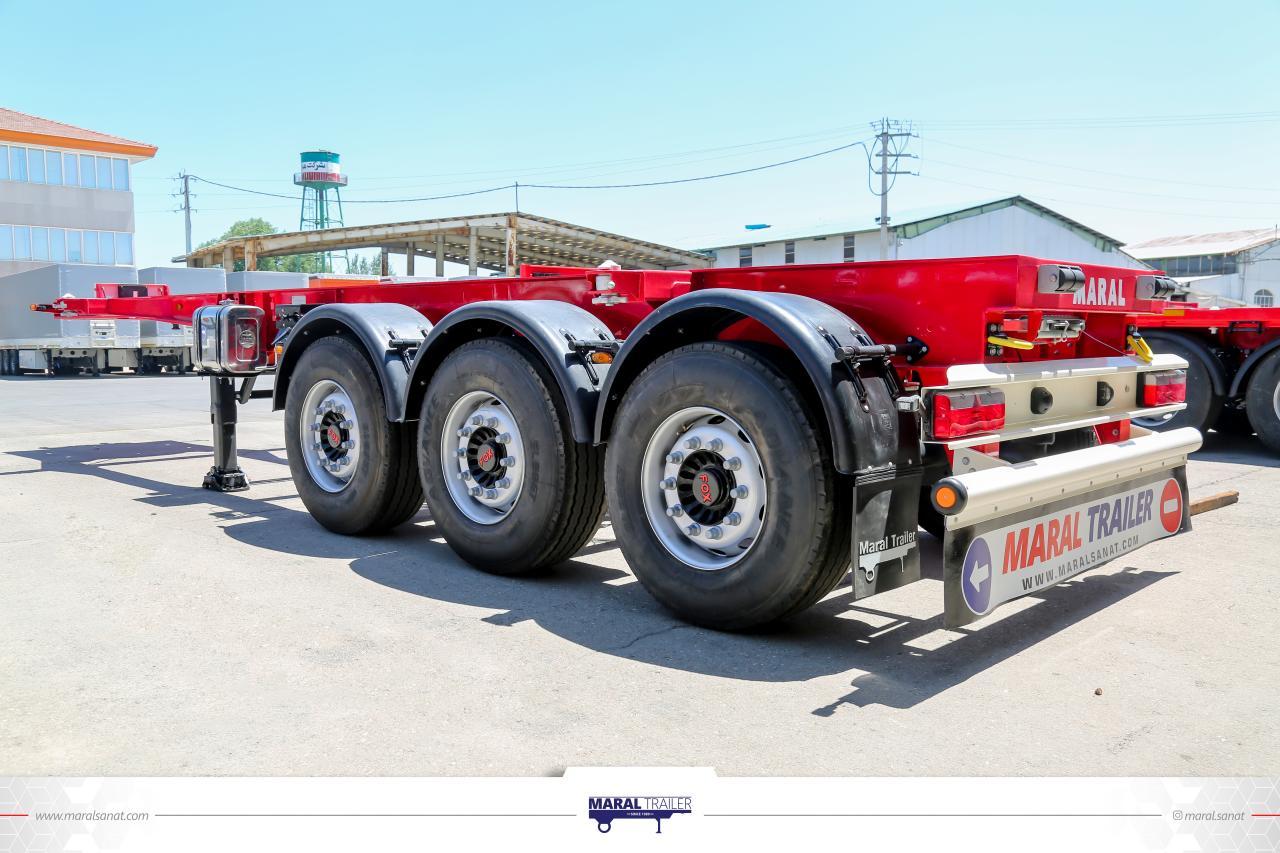

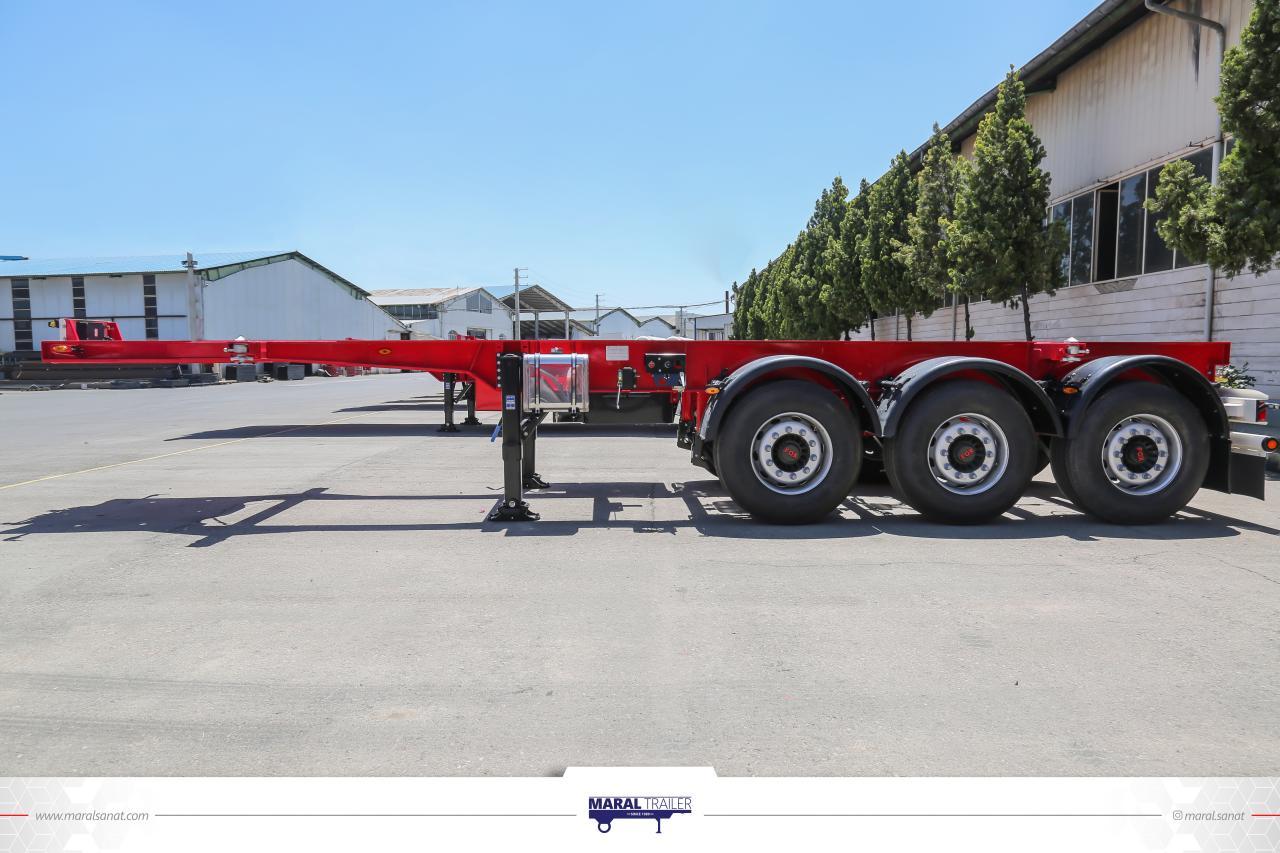

MARAL 3 AXLES CONTAINER CHASSIS SEMI TRAILER 20ft
Chassis Construction
Chassis and other metal pieces are made of high – strength steel (S500MC) with special fixture automatic Co2 argon welding machine.
Braking System
EBS System (Electrical Anti Block Brake System) with RSP (Roll Stability Program) Disc and Drum, Knorr® / Wabco®(germany) Two double acting diaphragm brake chamber per axle.
Suspension and axles
3×9 ton EU standard disc brake or drum brake, front lift axle.
Painting
Shot blasted, according to SA2/5 and washed by special material, painted with a layer of epoxy primer and of polyurethane final coat
Electric System
7 and 15 Pole quick release connector, Austrian Pair of 24 volts rear light, side light and alarming system from Aspock with LED Type.
Axle/ Suspension
axle with air bags cylinder air suspension system with special shock absorber Lower and Rise Capability of Trailer
Landing Legs
Static Capacity 50 Tons & Dynamic Capacity 24 Tons (JOST) Germany
King pin
2 Inch JOST king pin made in Germany
Tires
6 pieces 385/65R22.5
Rim
6 pieces rims 22.5 × 11.75 tubless
Trailer park lock system
Automatic front lift axle
60 Lit Water tank
3-step sliding ladder
Galvanized spare tire holder
Plastic chock pcs
Fix Rear bumper
2 Toolboxes
Holder for fire extinguisher
6 pcs mud guards and 2 mud flaps

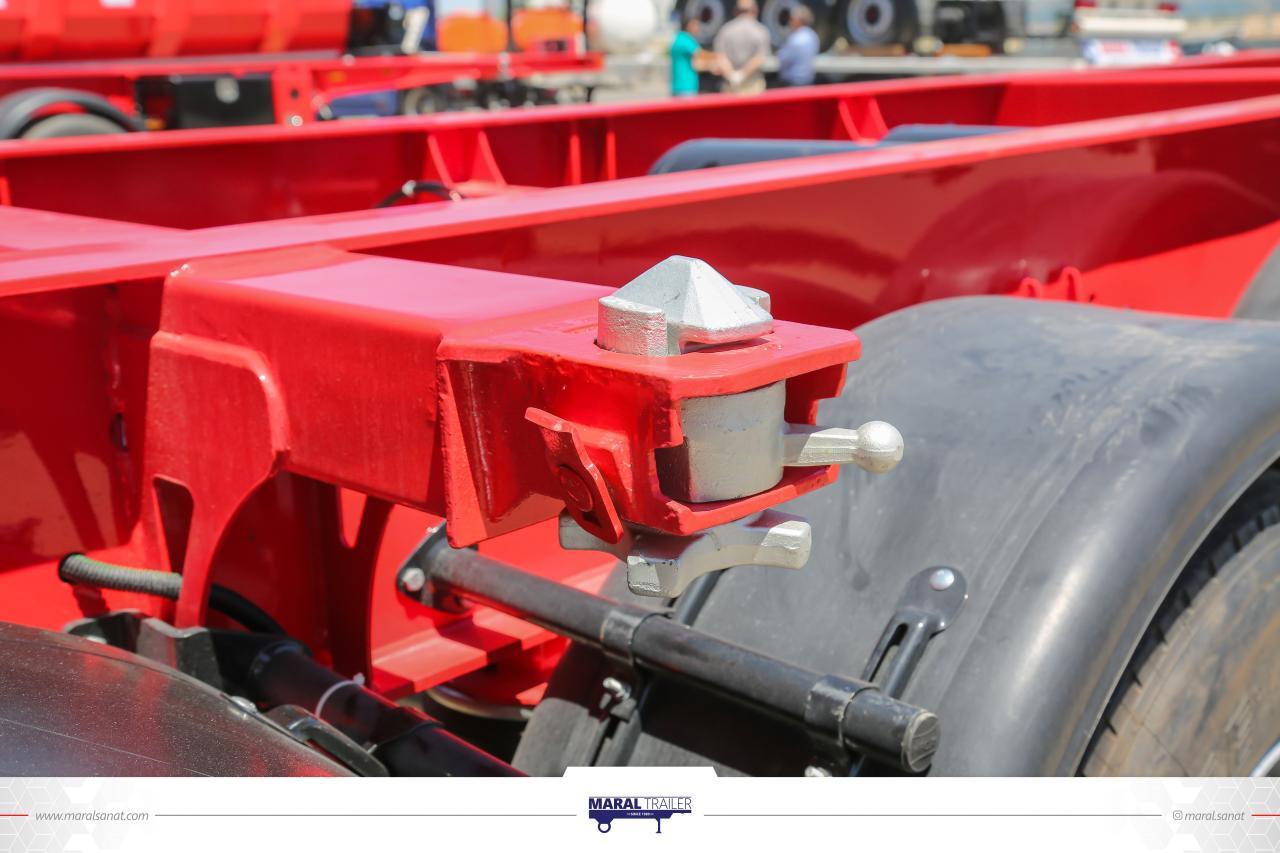

12 pcs container locks for carrying 20-40 feet containers
Holding standard and certificate of welding inspection and dimensional control
Optional rims and spare Tires
King pin load
11500 kg
Axle spread
1280 mm
Axle load
27000 kg
Wheelbase
5875 mm
Tare weight
-
Rear overhang
2110 mm
Pay load
33000 kg
Centre of rear axle to rear edge
830 mm
5th wheel
1150 - 1200 mm
Outside width
2550 mm
Truck type
6 Wheels Trucks
Overall length
9060 mm
