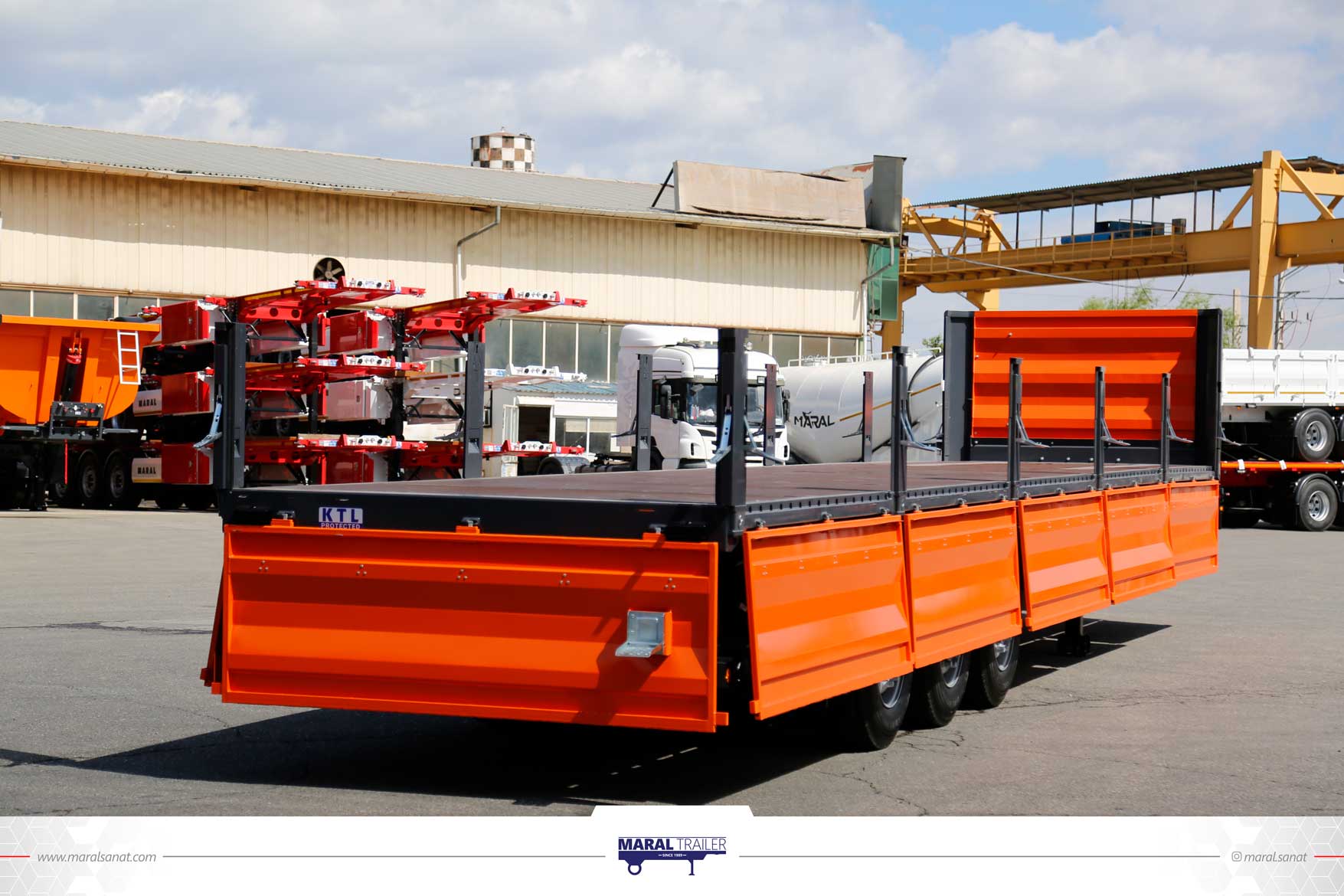

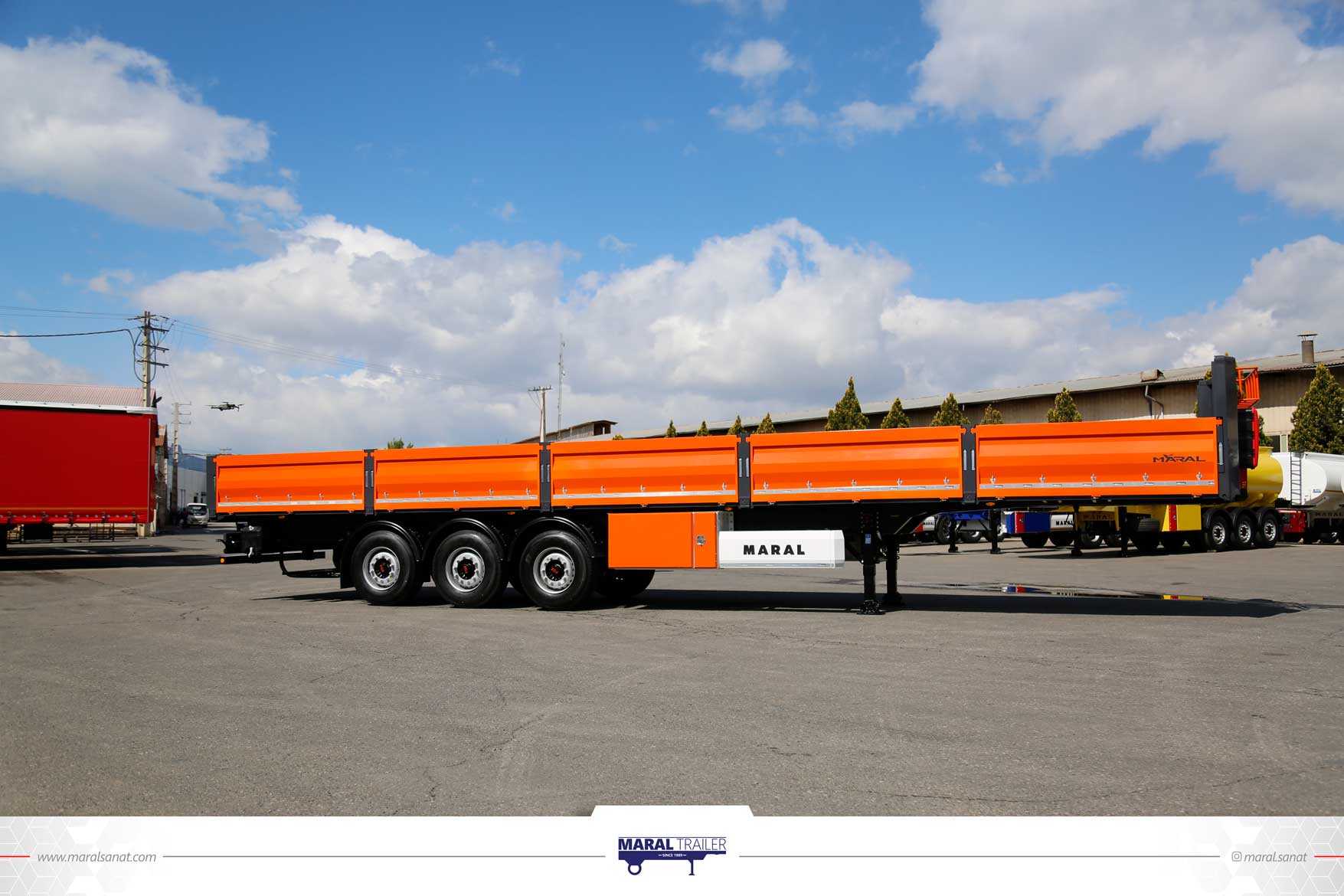

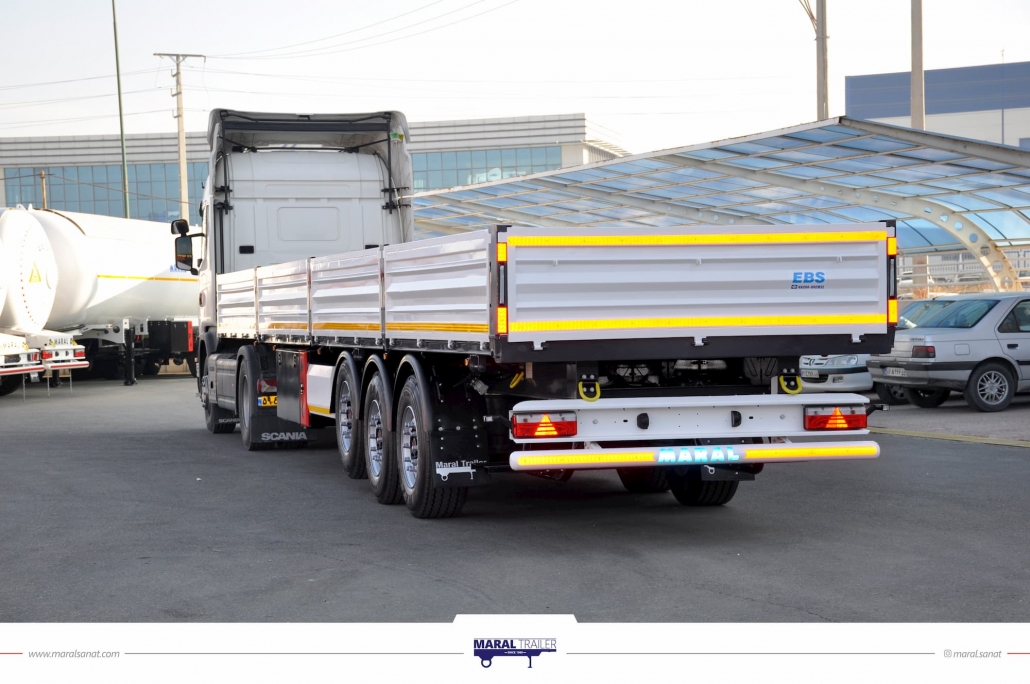

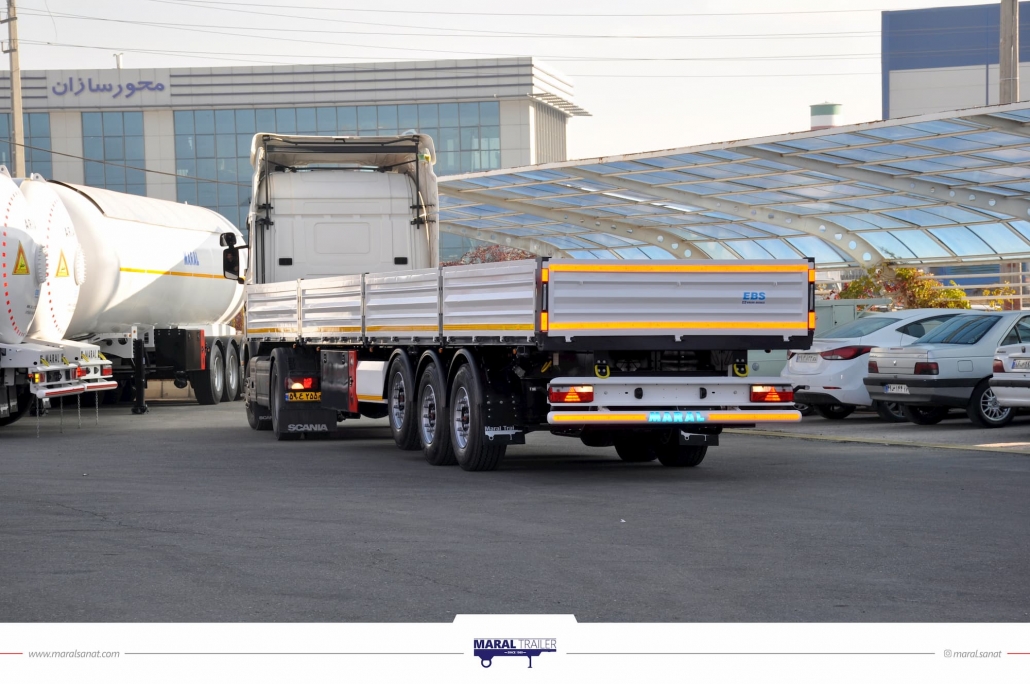

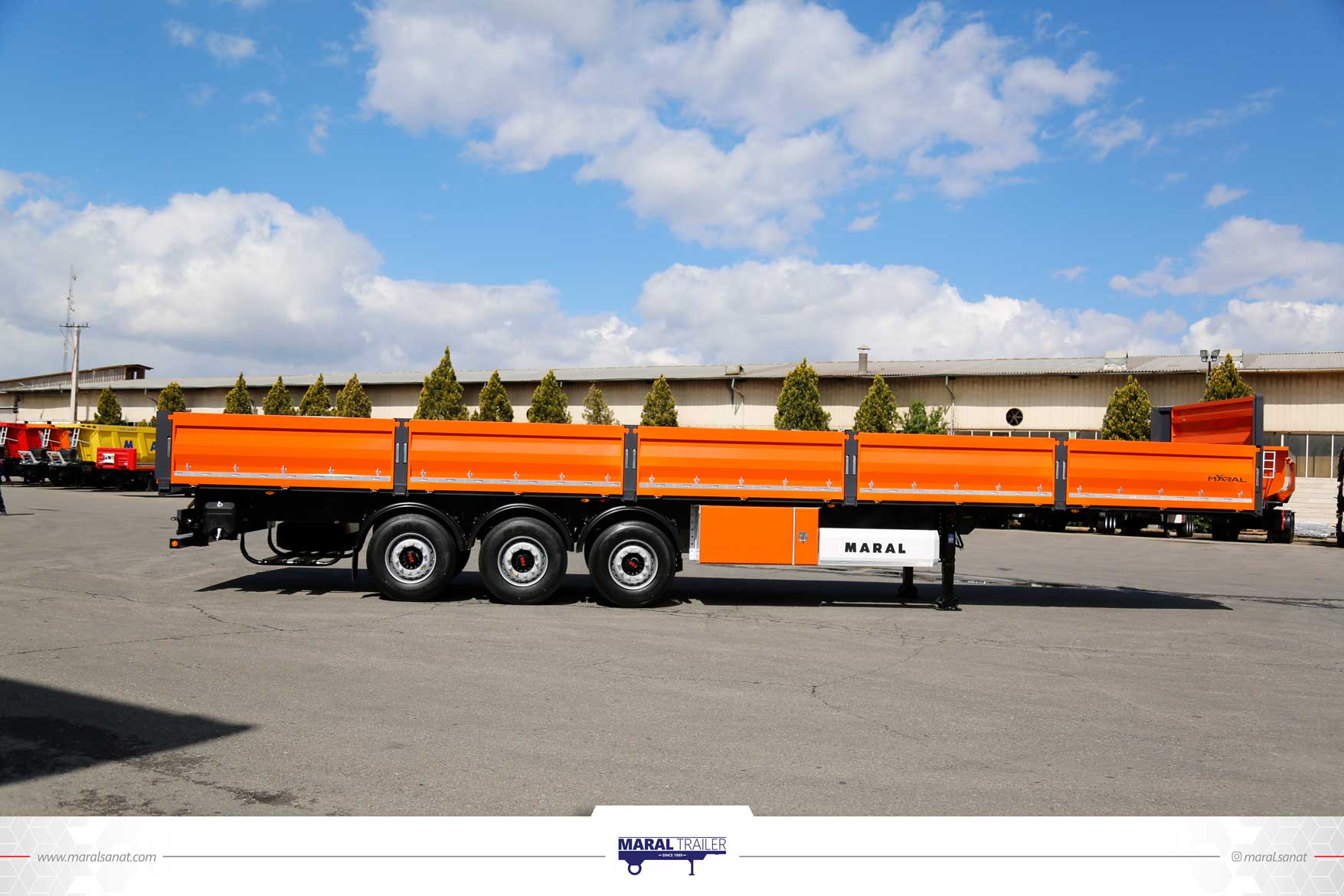

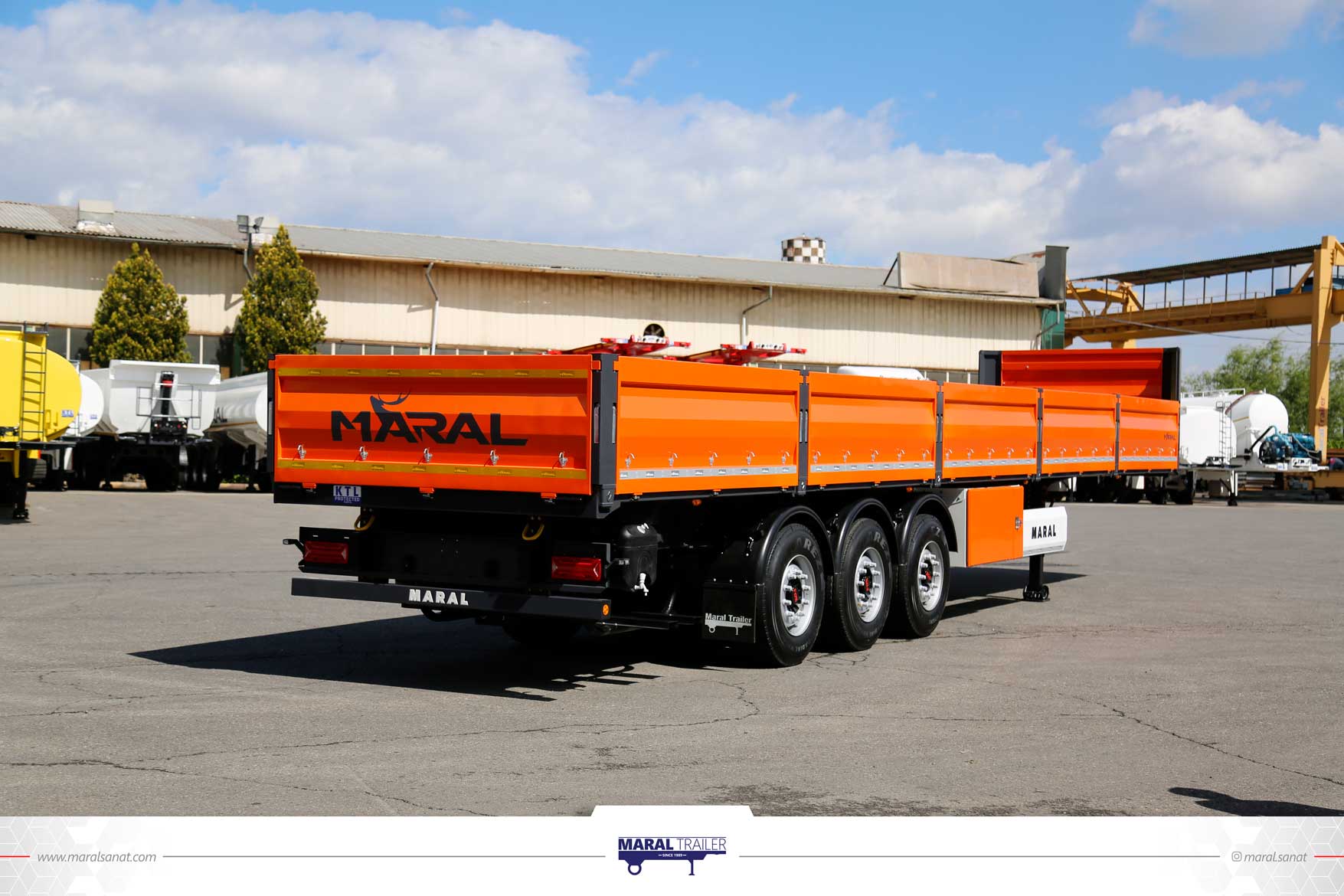

MRL TKB3 - drop side tipper
MARAL 3 AXLES DROP SIDE TIPPER SEMI TRAILER
Chassis Construction
Chassis and other metal pieces are made of high – strength steel (S500MC) with special automatic Co2 argon welding machine.
Cylinder
3 Five-level telescopic cylinder (170-190 EMB), EU Standard with related accessories
Body Construction

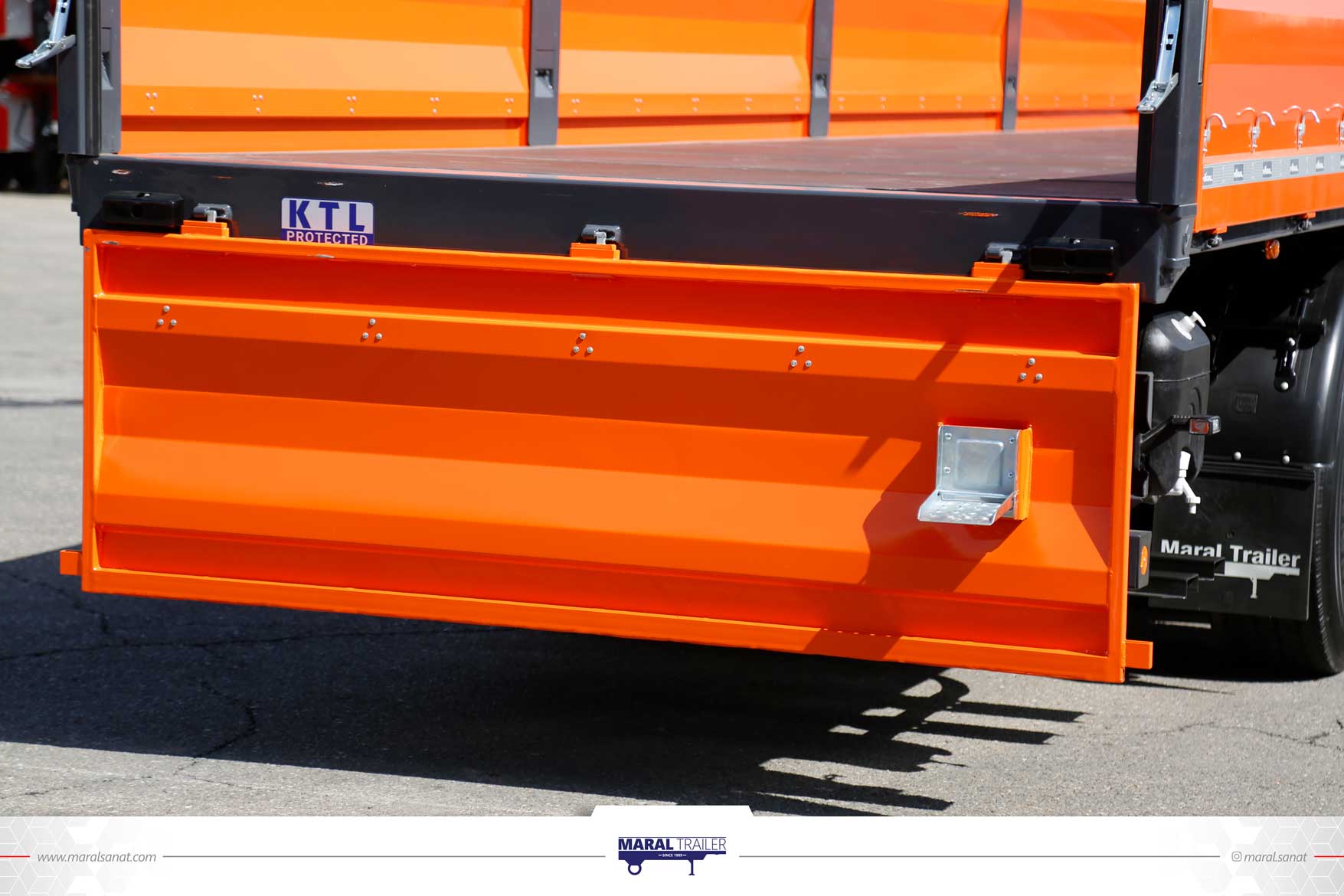

8 side doors and 2 rear doors and front panel, height 1600 mm with hooks to tie up curtains / floor made of ribbed steel plate.
Braking System
EBS System (Electrical Anti Block Brake System) with RSP (Roll Stability Program) Disc and Drum, Knorr® / Wabco®(germany) Two double acting diaphragm brake chamber per axle.
Suspension and axles
3×9 ton EU standard disc brake or drum brake, front lift axle
Painting
Shot blasted, according to SA2/5 and washed by special material, painted with a layer of epoxy primer and of polyurethane final coat
Electric System
7 and 15 Pole quick release connector, Austrian Pair of 24 volts rear light, side light and alarming system from Aspock with LED Type.
Axle/ Suspension
axle with air bags cylinder air suspension system with special shock absorber Lower and Rise Capability of Trailer
Landing Legs
Static Capacity 50 Tons & Dynamic Capacity 24 Tons (JOST) Germany
King pin
2 Inch JOST king pin made in Germany
Tires
6 pieces 385/65R22.5
Rim
6 pieces rims 22.5 × 11.75 tubless
Trailer park lock system
Automatic front lift axle60
Lit Water tank
Galvanized spare tire holder
Plastic chock Pcs
Fix Rear bumper
2 Toolboxes
3-step sliding ladder
Holder for fire extinguisher
6 pcs mud guards and 2 mud flaps
Holding standard and certificate of welding inspection and dimensional control
Optional rims and spare Tires
King pin load
11500 kg
Rear overhang
3620 mm
Axle load
27000 kg
Centre of rear axle to rear edge of body
2310 mm
Tare weight
-
Outside width
2550 mm
Pay load
33000 kg
Overall height
2270 mm
5th wheel
1200 - 1250 mm
Overall length
12980 mm
Truck type
Designed for 6 wheels Trucks
Access length
12560 mm
Axle spread
1310 mm
Access width
2465 mm
Wheelbase
7850 mm
Access height
-
