MRL DS00002 - tipper

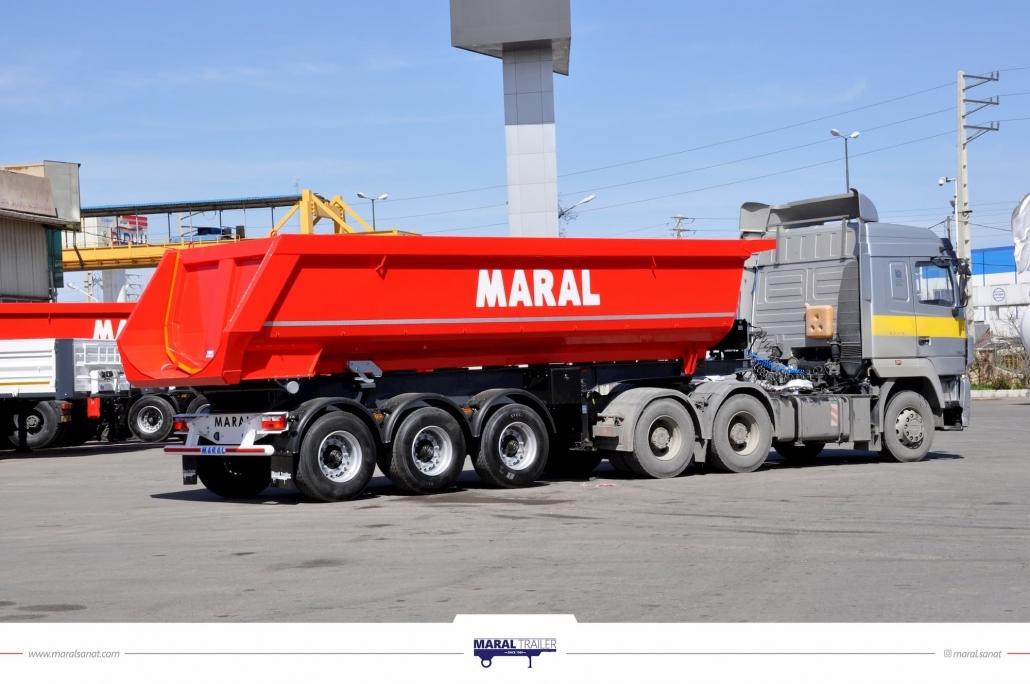

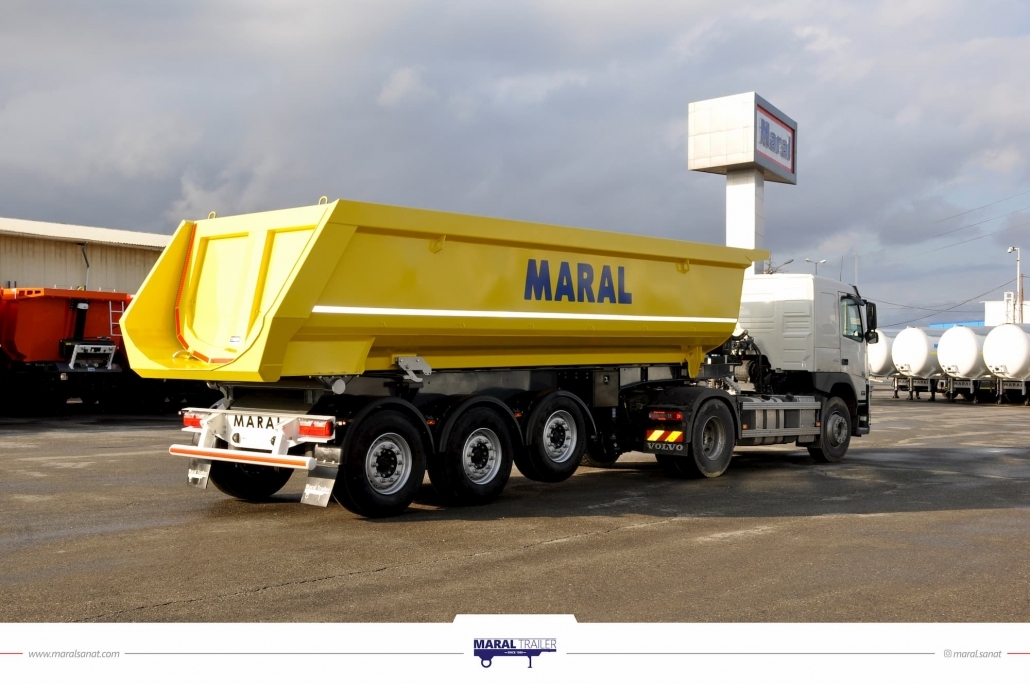

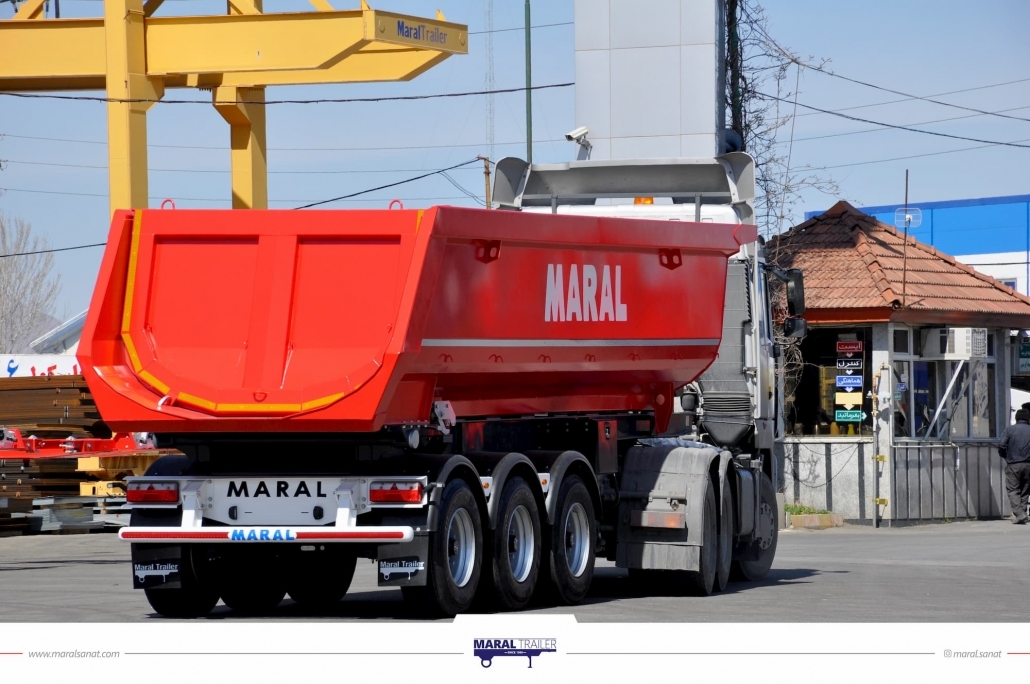

MARAL 3 AXLES 24m3 TIPPER SEMI TRAILER

MRL DS00002 - tipper
Chassis Construction
Chassis and other metal pieces are made of high – strength steel (S500MC) with special automatic Co2 argon welding machine
Cylinder
Five-stage telescopic jack stand (170-190 EMB), EU Standard with related accessories
Body Construction
Walls: thickness is 4 mm and reinforced by special steel diagonal bars (S500MC).
Floor
thickness is 5 mm and reinforced by special steel cross beams (S500MC).
Braking System
EBS System (Electrical Anti Block Brake System) with RSP (Roll Stability Program) Disc and Drum, Knorr® / Wabco®(germany) Two double acting diaphragm brake chamber per axle.
Suspension and axles
3×9 ton EU standard disc brake or drum brake, front lift axle
Painting
Shot blasted, according to SA2/5 and washed by special material, painted with a layer of epoxy primer and of polyurethane final coat
Electric System
7 and 15 Pole quick release connector, Austrian Pair of 24 volts rear light, side light and alarming system from Aspock with LED Type.
Axle/ Suspension
axle with air bags cylinder air suspension system with special shock absorber Lower and Rise Capability of Trailer
Landing Legs
Static Capacity 50 Tons & Dynamic Capacity 24 Tons (JOST) Germany
King pin
2 Inch JOST king pin made in Germany
Tires
6 pieces 385/65R22.5
Rim
6 pieces rims 22.5 × 11.75 tubless
Automatic front lift axle
Plastic Chock
Holder for fire extinguisher
60 Lit Water tank
Rear 3- step sliding ladder
Front galvanized ladder
Plastic chock
Trailer park lock system
Fix rear bumper
Toolbox
Galvanized spare Tires holder
6 pcs mud guards and 2 mud flaps

Holding standard and certificate of welding inspection and dimensional control and hydraulic test
Optional Spare Tires and rim
Side gearbox shaft to be installed by company

King pin load
11500 kg
Centre of rear axle to rear edge of body
1490 mm
Axle load
27000 kg
Outside width
2550 mm
Tare weight
8000 kg
Overall height
3100mm
Pay load
33000 kg
Overall length
10800mm
5th wheel
1150 - 1200 mm
Body volume
32m3
Truck type
Designed for 6 wheels Trucks
Body access height
1550mm
Axle spread
1310 mm
Body access width
2375mm
Wheelbase
6450 mm
Body access length
9125 mm
Rear overhang
2800 mm

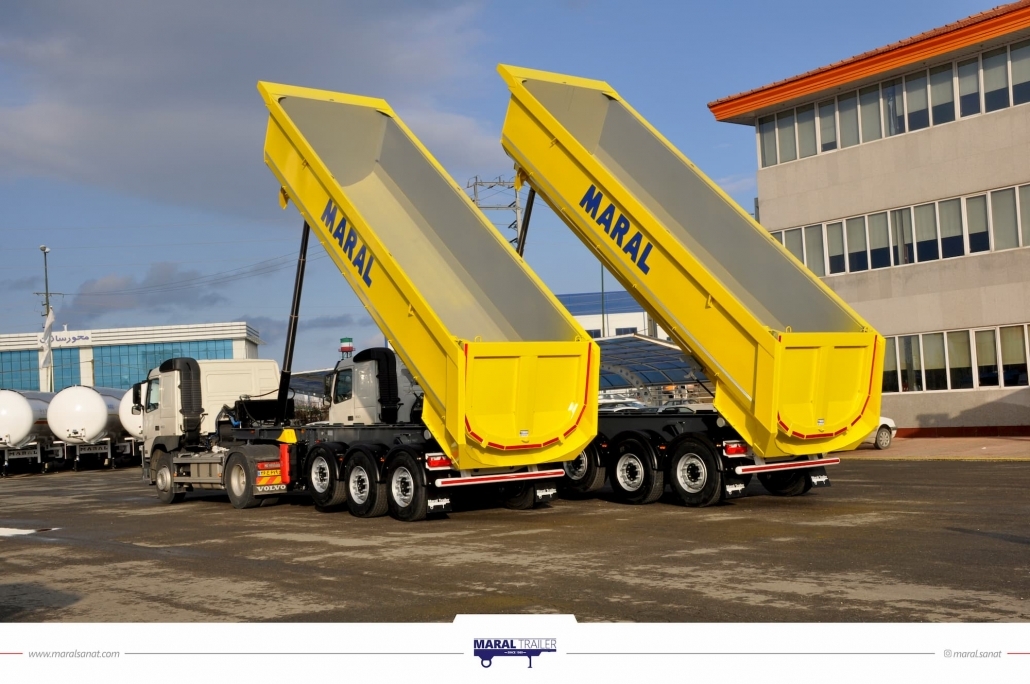

Max. tipping angle
42
